LCD Smart Battery Charger

Regular price $52.20

ONLY LEFT


Original MIBOXER Smart LCD USB Battery Charger for 26650 18650 18500 18350 Li-ion/IMR/INR/ICR/Ni-MH/Ni-Cd/LiFePO4 battery 3.7V



Introduction:

C4 is a smart charger designed by miboxer team,compatible with almost all type of rechargeable batteries like Li-ion/IMR/INR/ICR/Ni-MH/Ni-Cd/LiFePO4 batteries,as well as a high grade performance.With a large digital LCD display,easily to understand battery charging parameters and processes.

C4 has different charging features and modes according to different type battery charging.It use standard Li-ion battery charging mode when work with Li-ion/IMR/INR/ICR/LiFePO4 batteries;Use a full charge mode for Ni-MH, Ni-Cd batteries charging process.


Feature:

Input:AC86-265V/DC12V
Output(Max):4.2V±1%/4.35±1%/3.6V±1%/1.48V±1%

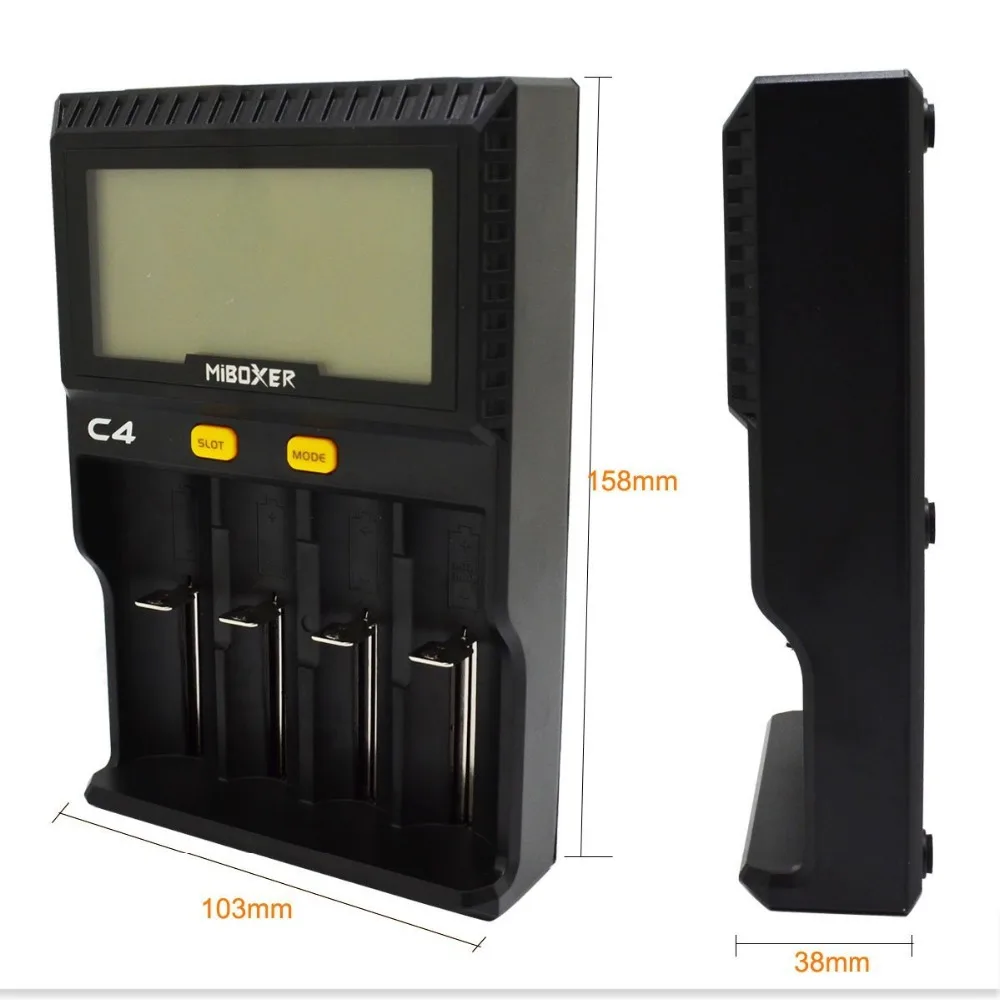

Size:103x158x38mm

Current:Li-ion/LiFePO4:(High:800mA*4,Low:350mA*4)Ni-MH/Ni-Cd: (
100*800mah 4th slot charging)

Tips:

что в случае зарада литий ионных аккумуляторов с большим внутренним сопротивлением автоматически снижается ток заряда, причем в случае когда внутреннее сопротивление выше 1 ома - ток заряда может быть менее 100миллиампер.

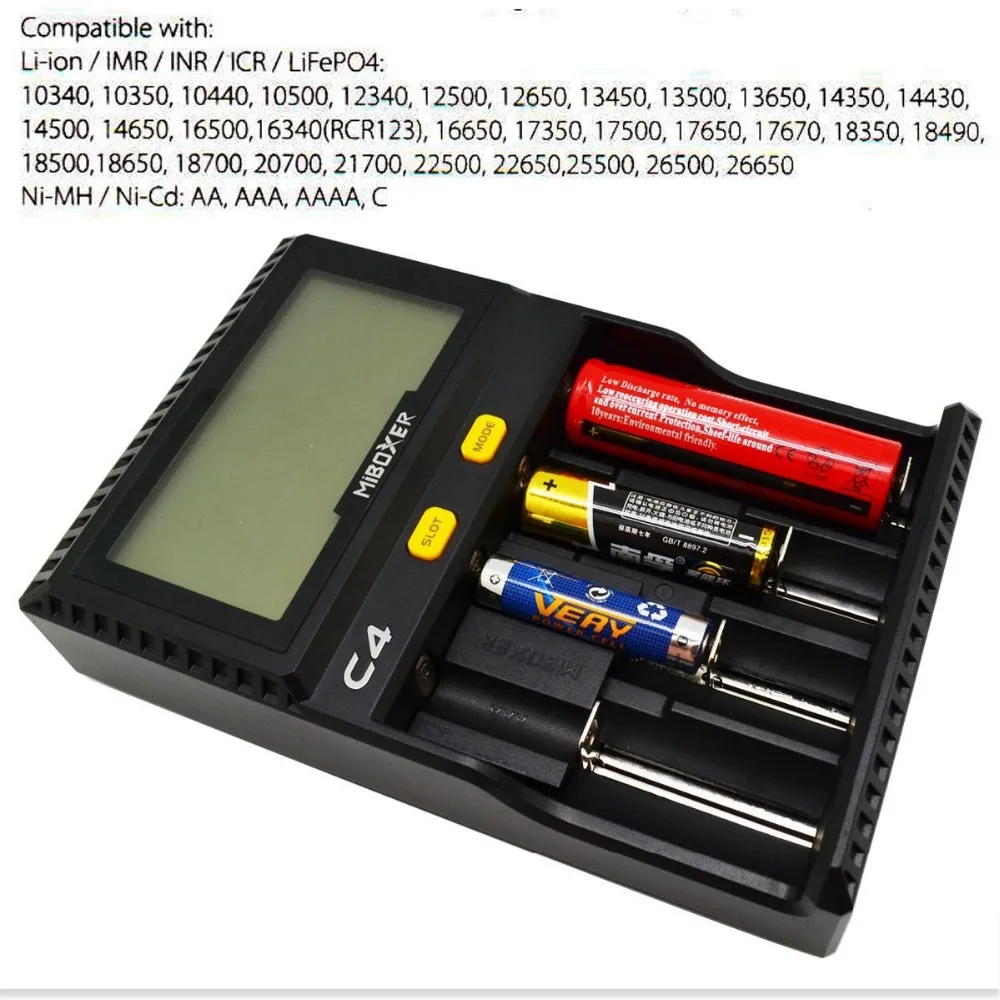

Compatible with all different type of cylindrical rechargeable lithium battery.
Up to 100-800mA charging speed in  4th slot.

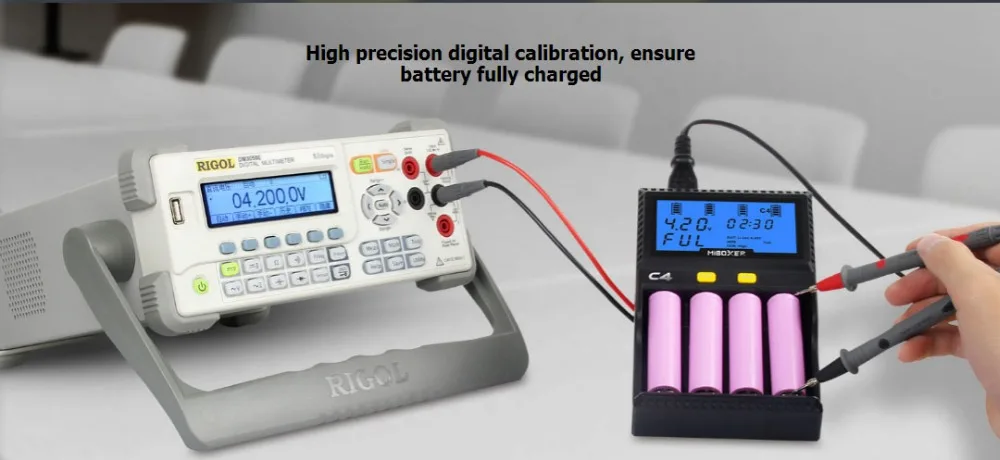

High precision calibration of voltage source.
Automatically stops charging upon charging compleion.
Reverse polarity protection and short circuit prevention.

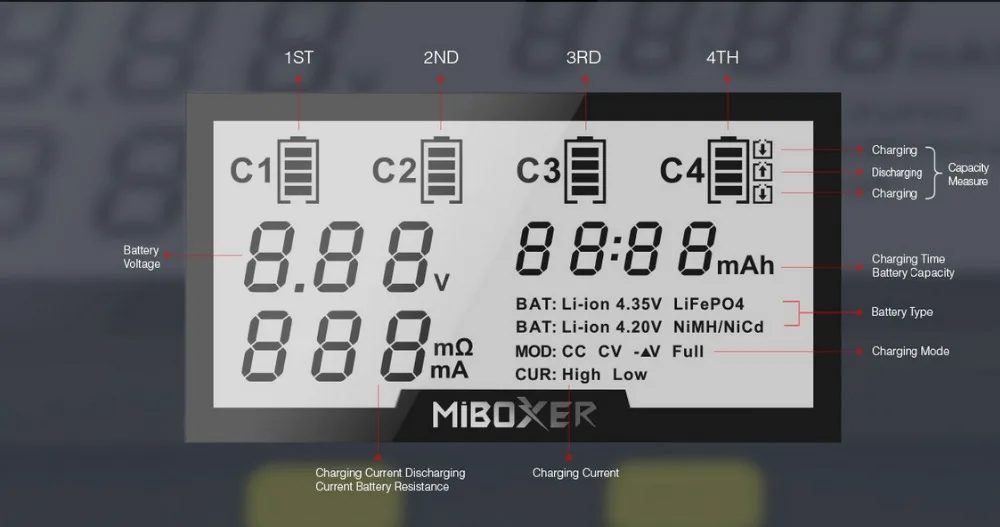

Automatically detects battery power status and displays charging progress.
Automatically detects battery resistance.
Detect battery dapacity in discharge.
Each battery slot controls and charges independently.
Support small capacity battery charging.
Support for lithium battery repair function.

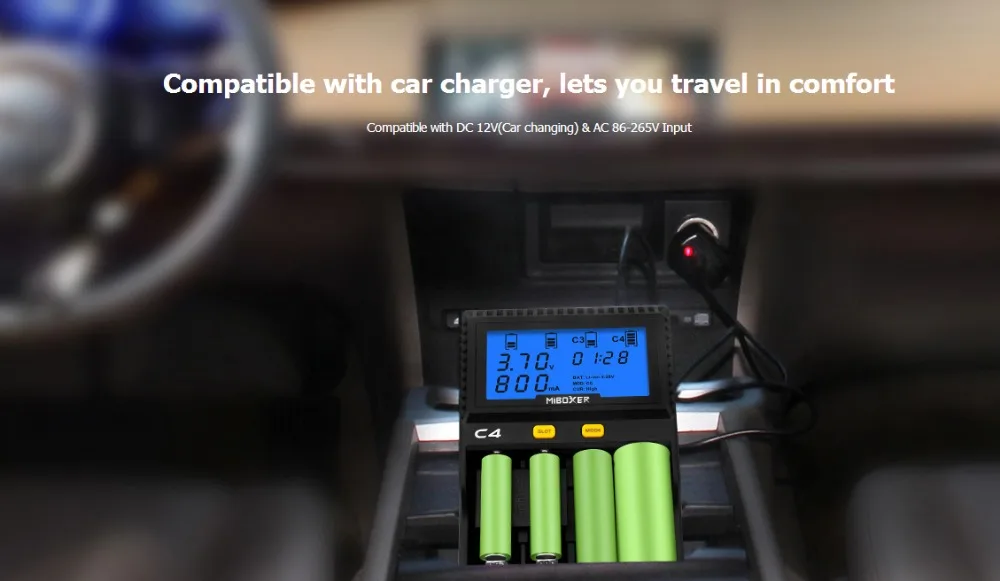

Compatible with DC12V car charging function.
Made of fire resistant,flame retardant PC material.
Designed by optimal heat dissipation.
Excellent circuit design,3 years warranty.


Paket Containing:

1 * Smart Battery Charger
1 * AC86-265V Charger Cable
1 * User Manual



1.Battery resistance measurement .

 Put htebattery in any channel ,the charger will display the battery voltage, and Automatically measure the battery resistance.

(1) LCD screen display ---mΩ, charger testing the battery resistance,detection time about 8seconds.

(2)LCD screen display 068mΩ charger measured battery resistance is 68mΩ.

Note. The internal tesistance display time is about 6seconds ,the battery resistance measurement is completed,automatically enter the charging mode.

2.Measurement Battery Capacity by discharger (only 4th slot)

Put the battery in the 4th slot ,short press mode  button "0000"maA flashes,and then press the mode key to switch the battery capacity function to turn on and off.

 (1) When three arrow displayed,indicates that the test battery capacity function is on.

 (2)When three arrow displayed,that the test battery capacity function is off.



3. Discharger current setting ()only 4 th slot)



 (1) Please the battery in the 4th channel of the charger and the battery is in the discharger mode.

 (2) Press and hold the mode button until the LCD screen "888mA" flashes,

 (3) Short press mode key to select the discharger current,select the range of 100-400mA.

 (4) Press and hold the mode key to determine the current.





Note: "mA" flash ,the charger according to the battery internal resistance automatically select the discharger current.



4.Charging Current setting



(1) Press and hold the mode button until the lcd screen 888mA flashes,

(2)Press the mode key repeatedly to toggle the charge current,Select the range of 100mA to 800mA.

(3)Press and hold the mode key to determine the current.
